Horizontal 5 Axis Dental Milling Machine Table Dental Mills
After two years R&D, Yucera launch a newest design splited
dental milling machine:
1. -Suitable for zirconia blocks , PMMA, Wax and Composite
material;
2. -Horizontal processing-speed can be increased by nearly 20%;
3. -Simple maintenance- When the all-in-one machine fails, the
after-sales maintenance is more complicated. The seperated
equipment only needs to replace the processing system to complete
the update and maintenance;
4. -Tool detection sensor with 2um
5. -24hours on-line technical support
6. -Include hyperdent(free)
Technical parameter for 5 axis milling machine:
| Axis | 5 Axis |
| Cut Method | dry milling |
| Milling Materials | zirconia block, pmma, wax, PEEK |
| Size of milling materials | φ98, thickness(10-30mm) |
| Range of rotation & tling rotation | x/y/z: 105 / 135/ 90 A:360° B:±30° |
| Speed of Principal axis | 0-60000rpm / 500w |
| Driver | Full rotation servo motor drive |
Horizontal processing VS Vertical machining:
1.Based on the original stable vertical machining, the horizontal
milling machine
puts the center of gravity lower.
2.Vertical and horizontal processing are both cradle processing
(Suitable for small precision parts processing).
There is not much difference between these two in the layout
and processing mode, but due to the excellent stability of
horizontal processing, the speed can be increased by nearly 20%
Cleaning and maintenance after processing:
Check the dust system regularly, preferably for two to three days,
insert the trachea pipe into the hole behind the vacuum cleaner,
press the dust key and suck.

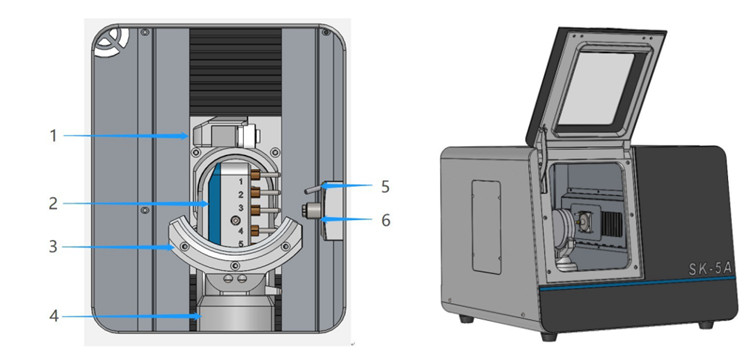

1. Knife setter 2.Tool library 3.Blank fixture and rotating shaftA
4.Axis of rotationB 5.Blowpipe 6.Spindle
1.BUTT JOINT WITH CUTTING MACHINE 2.NETWORK POT 3.POWER SWITCH
4.POWER CONNECTION 5.BUTT JOINT WITH HOST 6.BAROMETER 7.AIR INLET
8.VACUUM PORT
